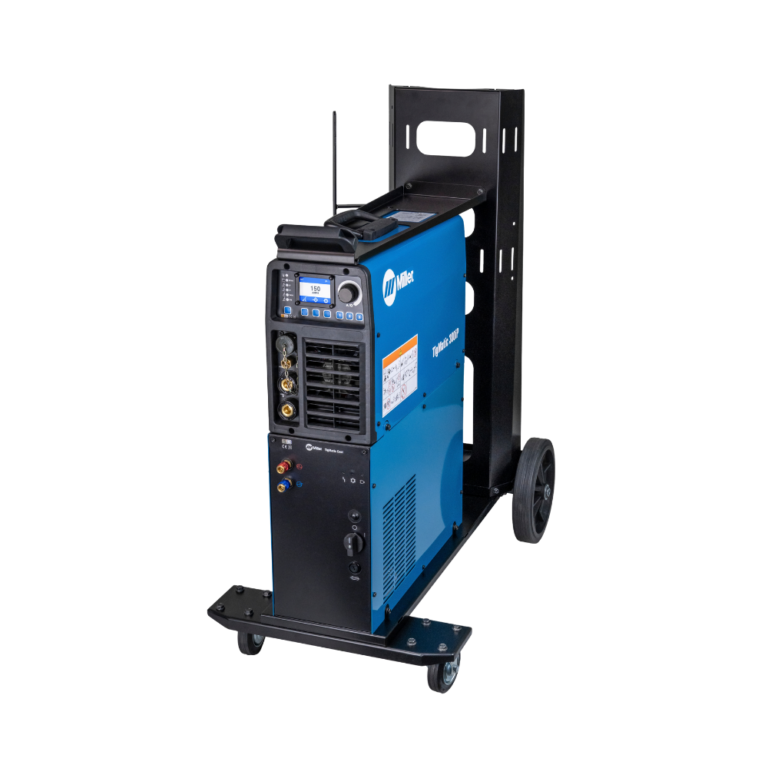

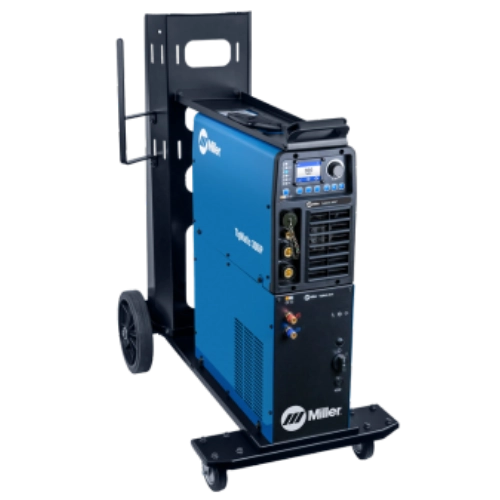

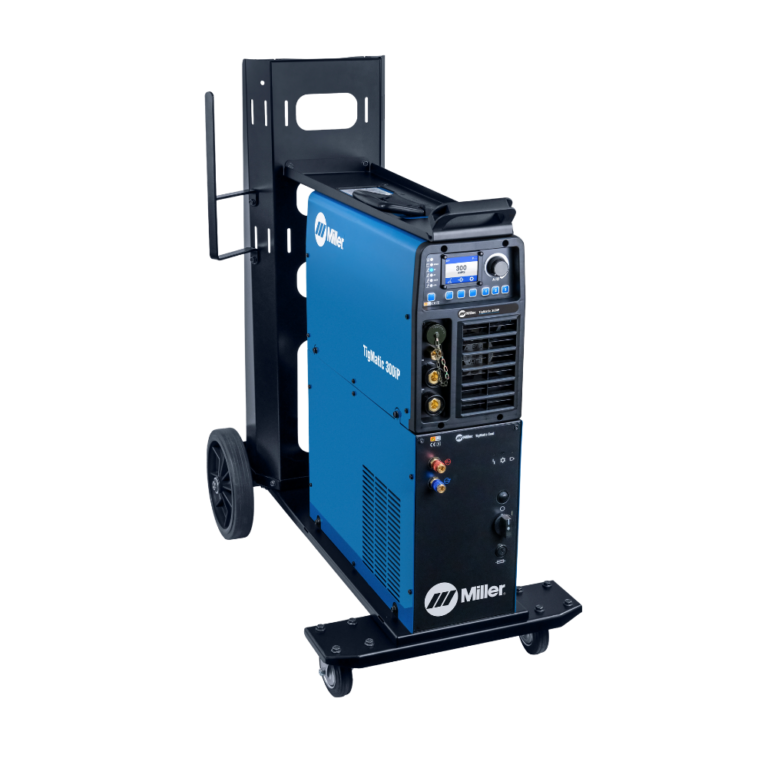

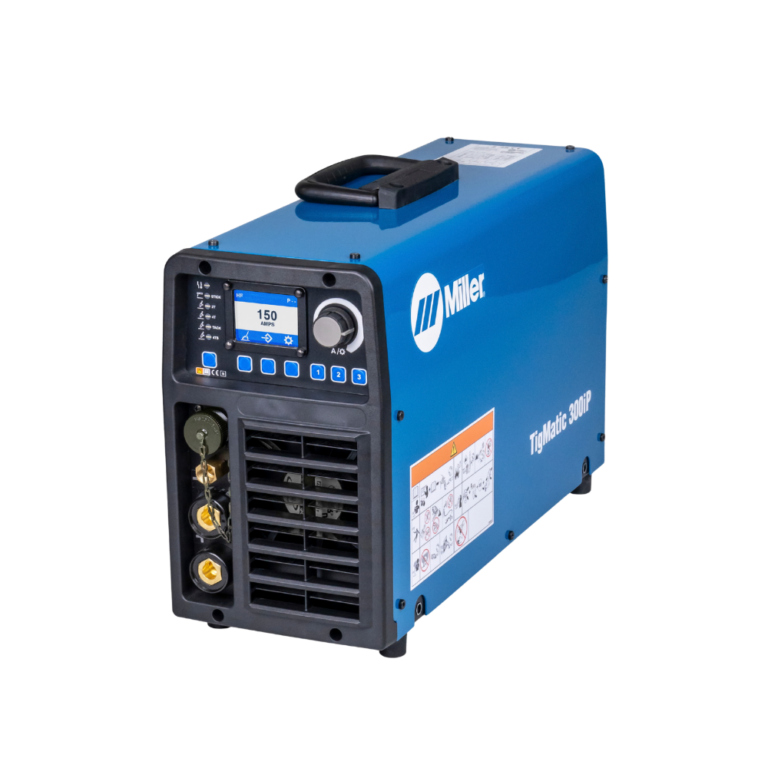

TigMatic® 300iP

59016034

Experience reliable and precise arc performance paired with a user-friendly interface that puts advanced capabilities at your fingertips.
With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds.

The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.

Welding Process:	DC TIG (GTAW) DC TIG pulsed (GTAW-P) MMA/Stick (SMAW)
Welding Output:	300A, 32V by 35% duty cycle
Output Range:	5-300A
Maximum Output Amperage:	300 A
Input Power:	400 V, 3 phases (50/60 Hz)
Rated Output:	300A @ 35% Duty Cycle
Net Weight:	Power source- 24 kg

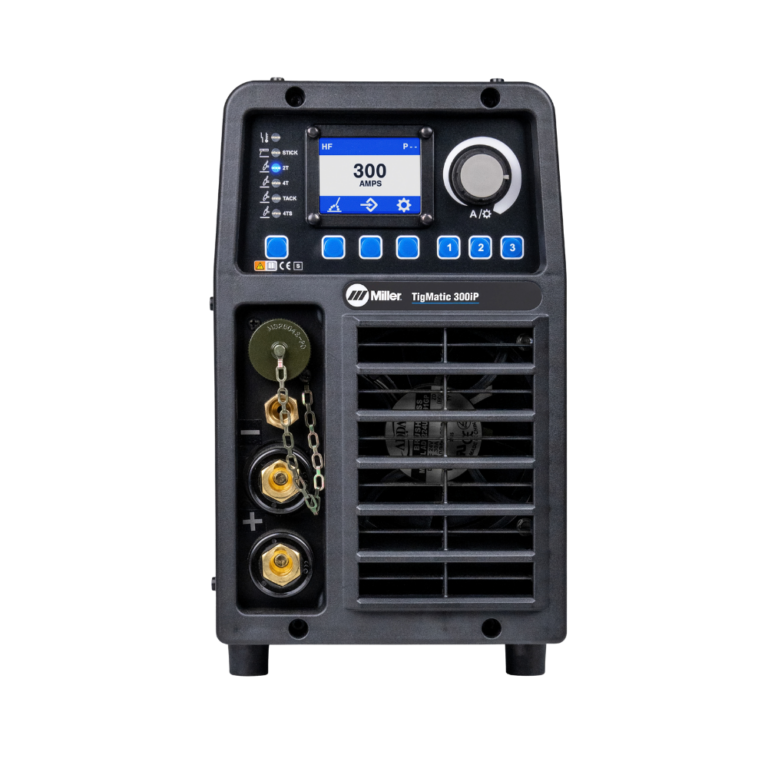

Graphical Surface Interface -The extremely intuitive LCD panel provides an overview of the settings and makes adjustments quick and efficient.
Optimised Start Sequence – For each Tungsten diameter, the start values are set automatically, ensuring smooth, accurate TIG starts every time.
Programme Memory – Store and recall 3 weld programs with direct access from the front panel or through trigger select.
- Deliver more productivity by eliminating the need to set the parameters manually
- Deliver consistent quality by welders of all skills
Trigger Select – Allows the operator to recall a stored program by tapping the torch trigger, eliminating the need to walk back to the machine to change parameters.
Advanced Remote Control Option – The weld current can be adjusted between or during welds.
- Compatible with Miller hand and foot controls (foot pedal).
- Select a wireless foot pedal for unrestricted flexibility
- Select a Miller EuroTorch with built-in remote option in the handle.
Tack welding mode – Provides precise and repeatable tacks, ideal for when preparing the weld object.
- Store and recall directly from the front panel to save time between weld cycles
- Maintain control of the heat input
4TS Trigger Mode – For manual adjustment of the heat input from the torch trigger.
- Toggle between two different current levels without extinguishing the arc
Optimized MMA Performance – For Basic, Rutile and cellulosic electrodes,
Select electrode type in the set-up menu to get suitable arc force and hot start parameters, ensuring good starts and good arc control

Industries:

Food and Beverage
Petro chemical
Pipe spool fabrication
Ship building
General fabrication

Spec Sheet EN

TigMatic® 300iP

59016034

The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.
