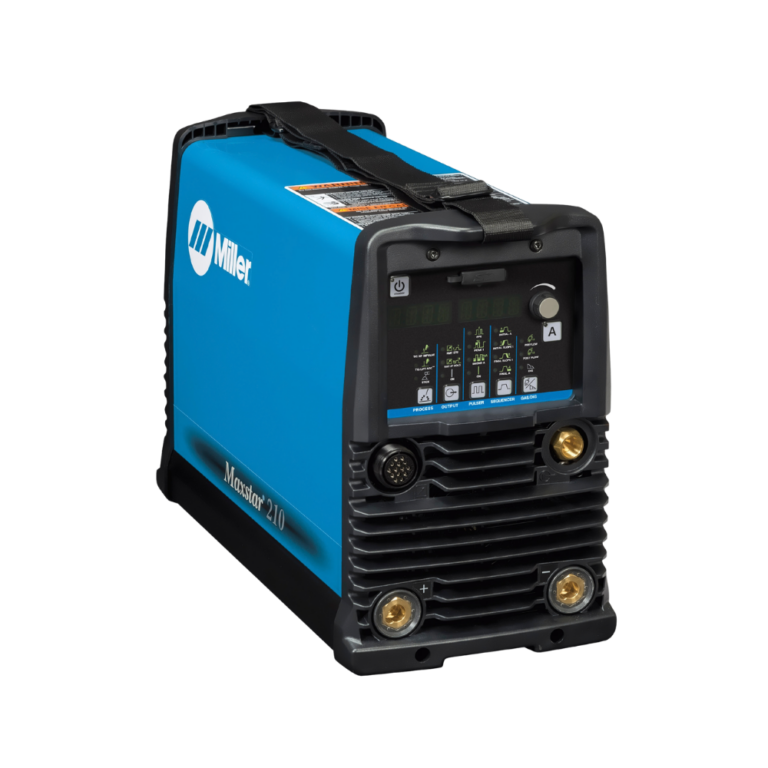

Maxstar 210

907683 / 907684

Maxstar 210 is an example of dependable Miller solutions. Maxstar 210 welders deliver the best performance to get high-quality work done — quickly and easily. Easy-to-use Pro-set technology speeds up setup time, Easy to update from the front panel makes it as good as new, and makes it a versatile, compact, and portable machine

Part number: Standard	907683
Part number: DX model	907684
Welding processes	DC TIG, Pulsed TIG, Stick
Output Range:	120 V: 5–130 A (DC TIG), 20–90 A (DC stick) 240 V: 5–160 A (DC TIG) 20–160 A (DC stick)
Input Power	120–480 V, 3-phase or 1-phase power, Auto Line
Rated output:	208-480 V TIG 210 A, 60% 175 A, 100% 120 V TIG 150 A, 40% 125 A, 60% 100 A, 100% 208-480V STICK 210 A, 30%160 A, 60%125 A, 100% 120 V- STICK 100 A, 40% 90 A, 60% 75 A, 100%

QuietPulse – QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
Pro-Set Feature – This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse, and DIG parameters.

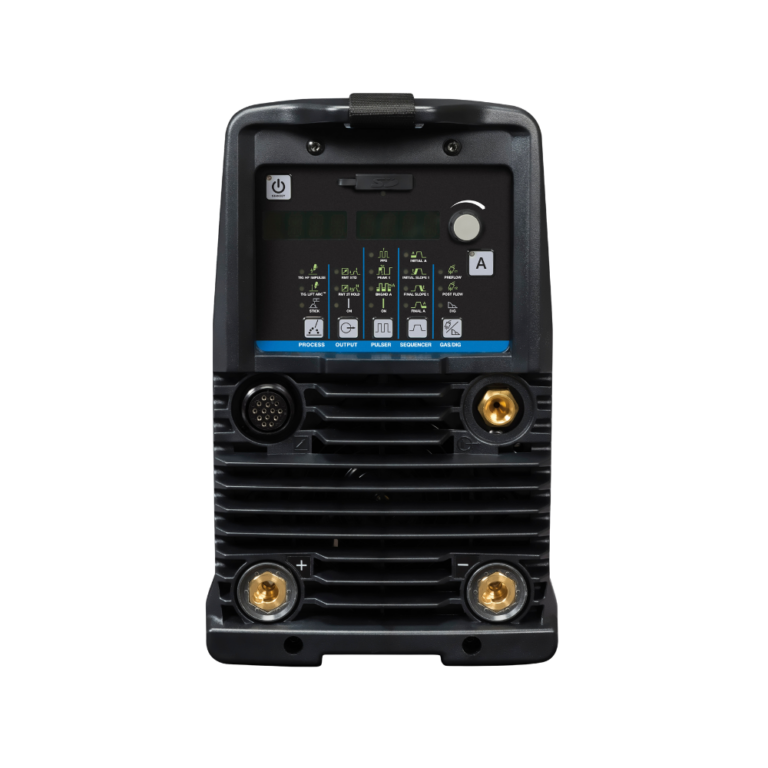

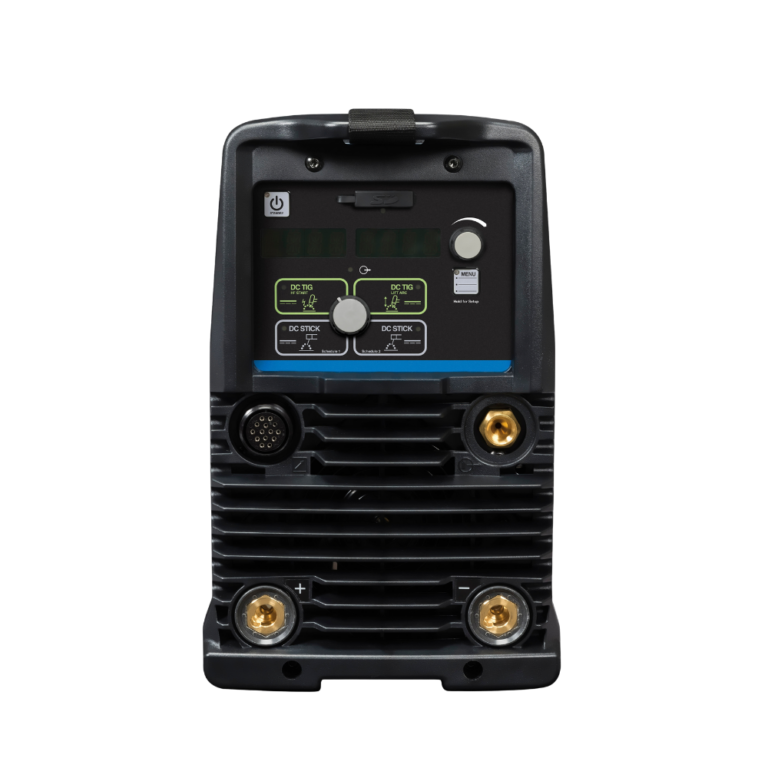

Base and Deluxe Models Available -Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. The DX model adds extended ranges to the sequencer and full trigger options, preflow, and pulser functions.
Upgradeable and Expandable – Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
Blue Lightning – High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
Hot Start Technology– Adaptive control provides positive arc starts without sticking.
Auto-Line Technology-Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
