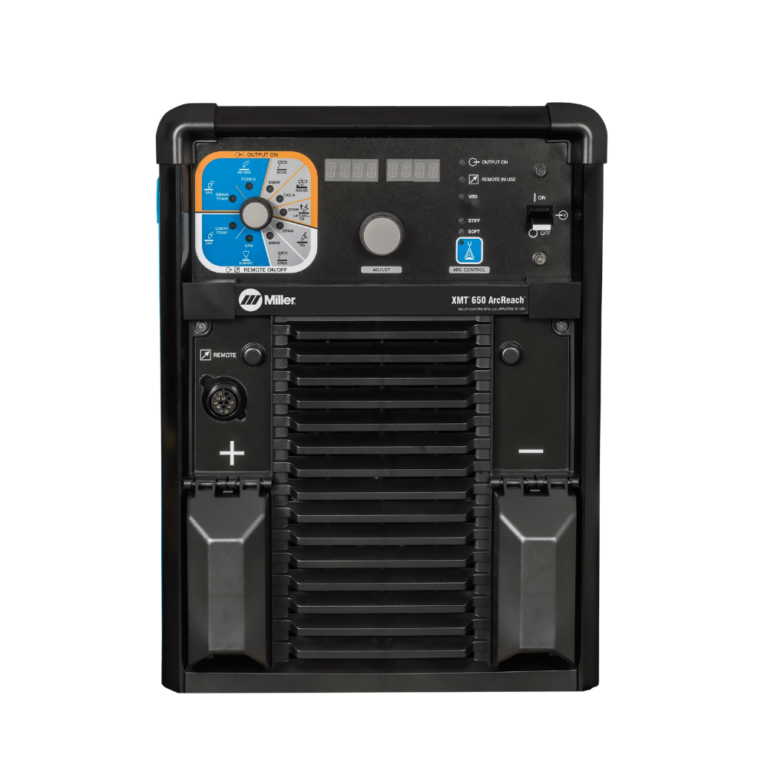

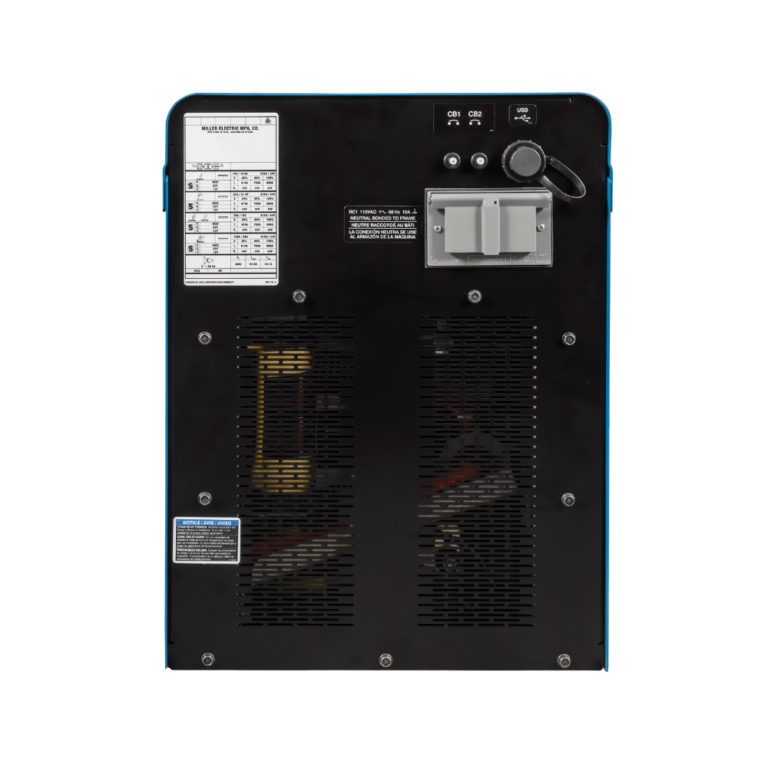

XMT 650

907845, 907823

The XMT 650 is a high-output powerhouse designed for heavy-duty manufacturing and carbon arc gouging. Delivering up to 650 amps, it handles the most demanding industrial tasks, including Submerged Arc welding. Built for extreme durability, it’s the ultimate solution for large-scale structural steel and heavy equipment repair.

Part number – XMT 650:	907845
Part number – XMT 650 with ArcReach:	907823
Welding Process:	MIG (GMAW), Flux-cored (FCAW), Submerged arc (SAW), Stick (SMAW), Lift Arc TIG (GTAW), Air carbon arc (CAC-A)
Input Power:	380/460 VAC – 50/60 Hz 3 Phase
Rated Output:	650 A at 44 VDC, 100% duty cycle; 750 A at 44 VDC, 60% duty cycle; 815 A at 44 VDC, 25% duty cycle
Weight:	84.8 kg

ArcReach Technology – ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.
Cable Length Compensation (CLC) – Cable Length Compensation (CLC™) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source.
Arc Control – Active in the Stick and Solid-Wire processes. Allows the operator to customize arc characteristics to match preference, electrode, and joint design, from a softer arc with more fluid puddle to a stiffer arc with a more controllable puddle. The Star setting is optimized for most applications, and pointing the control at Soft or Stiff is optimal for most arc preferences. Control is fully adjustable from 0 to 25 Soft or 0 to 25 Stiff.
Auto Remote Sense – Enables the unit to automatically use the remote control if connected to the remote control receptacle.
14-Pin Receptacle – Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
