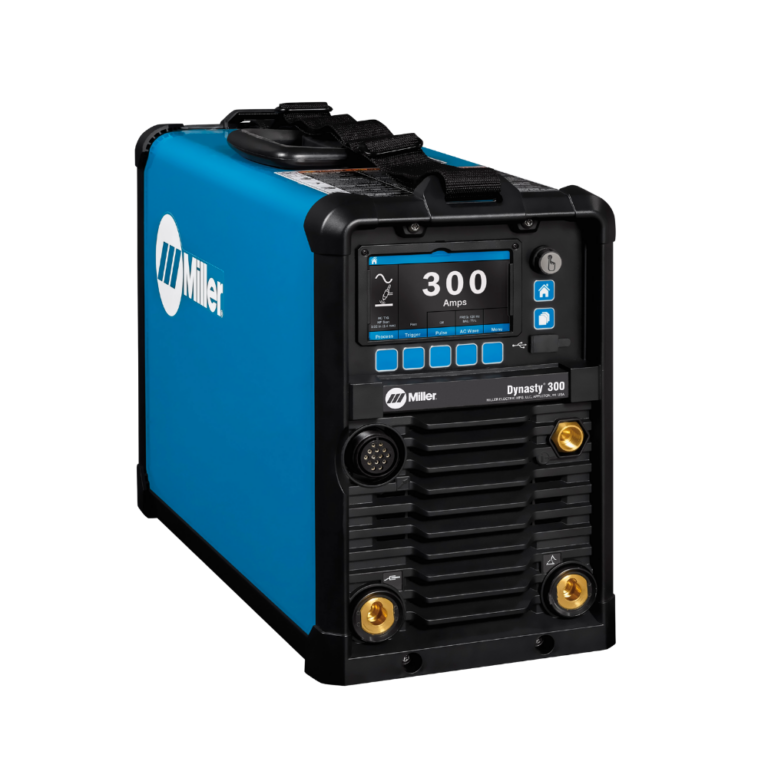

Dynasty 300 DX

907819

The Dynasty 300 Series is the latest machine with a powerful combination of capability and portability. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology. Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips. Industry-leading AC/DC TIG welding machine, Dynasty 300 is an example of dependable Miller solutions. Most flexible and dependable AC/DC TIG/Stick machine in the welding industry. Dynasty TIG power sources help minimize error and achieve high-precision welds every time. Easy-to-understand interface with 4.5-inch LCD display ensures proper machine setup and parameter selection. AC TIG features like Balance control provide adjustable oxide removal which is essential for creating the highest quality aluminum welds and the Frequency controls the width of the arc cone and can improve directional control of the arc.

Part Numbers	Power Source 907819, with TIG Runner : 907819001
Welding Process:	AC/DC HF TIG (GTAW), Pulsed HF TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) MIG (GMAW) Flux-cored (FCAW) *MIG and FCAW with AR Suitces feeder
Output Range:	1–300 A (DC), 2–300 A (AC); Voltage Range: 14–28 V (DC)
Input Power:	208–600 V, 3-phase or 1-phase power, AutoLine
Rated Output:	3 Phase MIG/FCAW –> 250 A at 26.5 V, 60% CC: TIG –> 250 A at 20 V at 60% CC: Stick –>250 A at 30 V 60% 1 Phase MIG/FCAW –> 200 A at 24 V 60% CC: TIG –> 250 A at 20 V, 60% CC: Stick –>200 A at 27.2 V, 60%

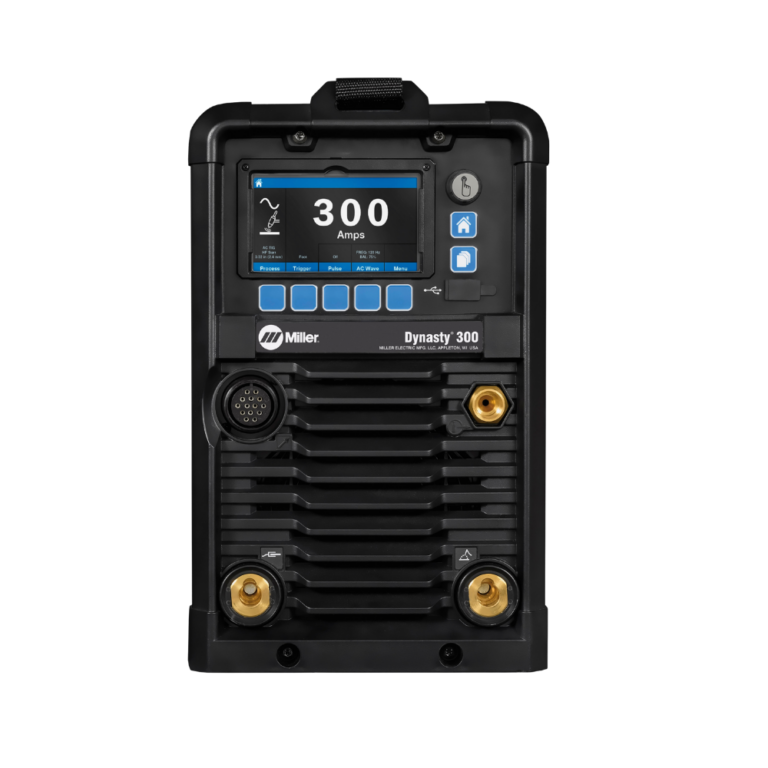

Intuitive Interface LCD Screen -Ensures proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
Locks and Limits – Provides control of the weld parameter ranges, minimizing deviations from the welding procedure specifications (WPS).
Program Memory – Allows easy naming, saving, and recalling up to 99 custom weld programs.
Pro-Set Feature -This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Quiet Pulse Technology – QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
USB Port – Lets you easily update software, back up settings, and transfer saved weld programs from one unit to the next.
Stick Features – Tailored arc control (DIG) lets you adjust arc characteristics for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
AC Frequency Control – Controls the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Auto-Line Technology -Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
MIG – CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
Blue Lightning – High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.

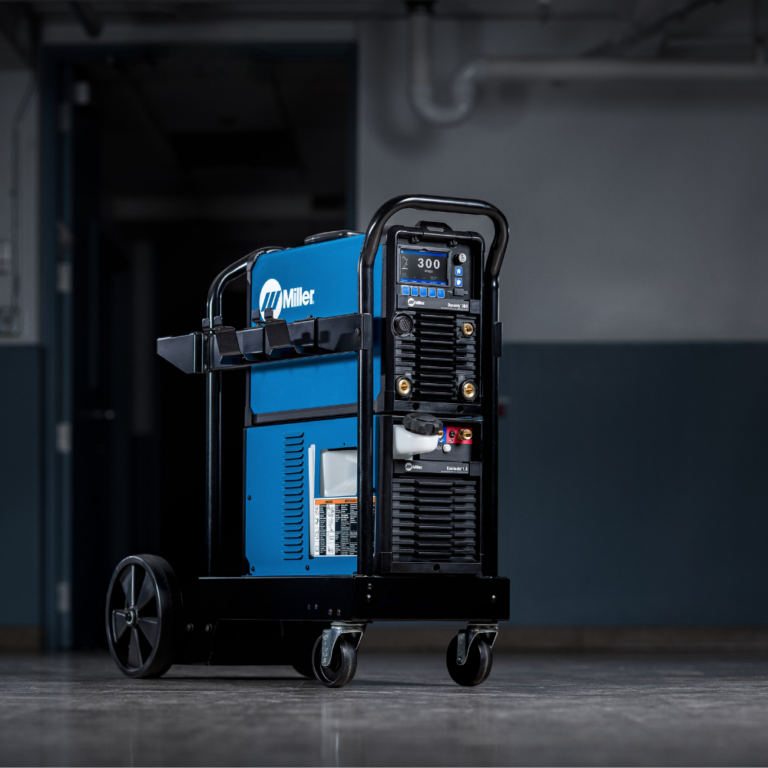

Cooler-on-Demand – Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
Fan-on-Demand – Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through the machine.
