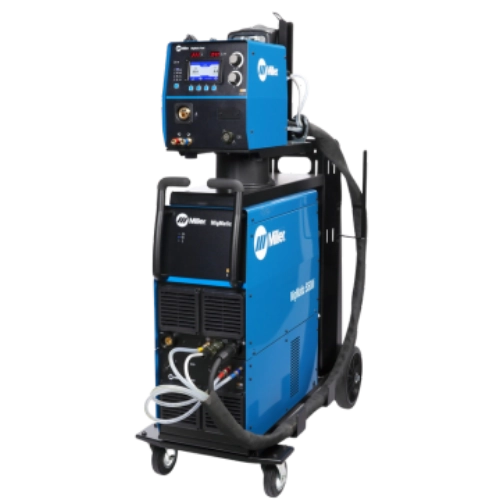

MigMatic® S500i

059015056

Experience reliable and precise arc performance paired with a user-friendly interface that puts advanced capabilities at your fingertips.
With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds.

The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.

Welding Process:	MIG/MAG (GMAW), Flux-cored (FCAW)
Welding Output:	500 A, 39 V at 50% duty cycle
Output Range:	15- 500 A
Maximum Output Amperage:	15 A – 500 A
Input Power:	400 V, 3 phases (50/60 Hz)
Rated Output:	500A @ 50% Duty Cycle
Net Weight:	Power source: 53 kg, Wire feeder: 19 kg, Cooler: 23 kg

Trigger Program Switch- Recall up to 4 preset programs from the torch trigger (any standard MIG torch) for increased productivity on complex objects.
Miller Robustness – Tested and approved for heavy-duty welding under the toughest conditions. Miller goes to extreme measures to ensure trouble-free welding in any environment.
The Toughest Wire-Driven Mechanism – The Miller unique 4-roll drive system will ensure trouble-free wire feeding.
Energy Efficient – The Fan-On-Demand™ power source cooling system operates only when needed, reducing the amount of contaminants pulled through the machine. The MigMatic® Cool is controlled and monitored by the power source and runs only when needed, reducing noise and the overall energy use.
Full Synergic MIG/MAG with Preset – Synergic lines for all common wire/gas combinations with presets of start/stop parameters for optimal welds.
Wind Tunnel Technology – Internal airflow that protects electrical components and PC boards from dirt, dust, and debris, greatly improving reliability.
Ease-of-Use and Versatility – Large intuitive LCD panel for quick and precise setting of advanced weld parameters.

Industries:

General industrial fabrication
Construction
Railcars
Mobile machinery
Shipbuilding

Data Sheet EN

MigMatic® S500i

059015056

The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse, and MMA, including cellulosic electrodes, in even the toughest environments.
