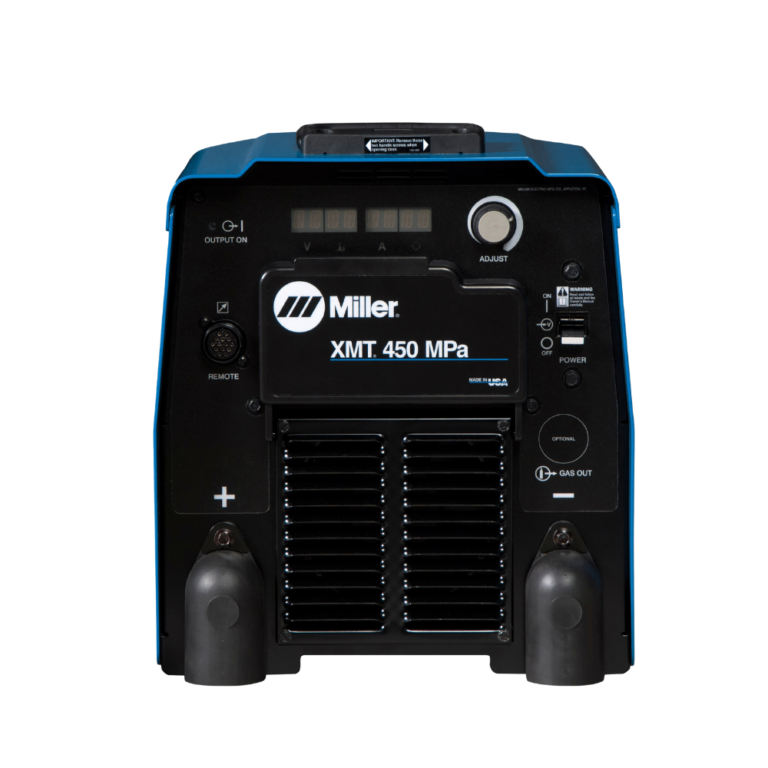

XMT 450 MPa

907479 / 907479001

The Miller XMT 450 MPa is a legendary industrial powerhouse. This compact, portable machine offers elite arc performance for all processes. Its built-in Pulse function provides superior control for aluminum and thin sheet metal.

Part Number	907479 – XMT® 450/600 MPa 230/460V 907479001- XMT® 450/600 MPa 230/460V, Aux Power
Welding Process:	MIG (GMAW), Pulsed MIG (GMAW-P), Stick (SMAW), Lift Arc TIG (GTAW), Flux-cored (FCAW), Air carbon arc cutting and gouging (CAC-A)
Output Range:	Amperage: 15 – 815A, Voltage: 10 – 65 V
Input Power:	230/460 V or 575 V. Requires 3-phase power. For 907468 only Requires 400V, 3 Phase power supply
Rated Output:	450A at 38V, 100% Duty Cycle.

Standard 14-Pin Receptacle – Has the flexibility to be used with spool guns, feeders, and remote controls.
Wind Tunnel Technology – Internal airflow that protects internal components from dirt, dust, and debris— greatly improving reliability.
Advanced Features for the Professional Welders – Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control is available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ – TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
Built-in Pulse Programs – Provide a reduced heat-affected zone, welding in all positions, great for thick-to-thin metal, good gap-filling ability, and faster travel speeds and deposition.

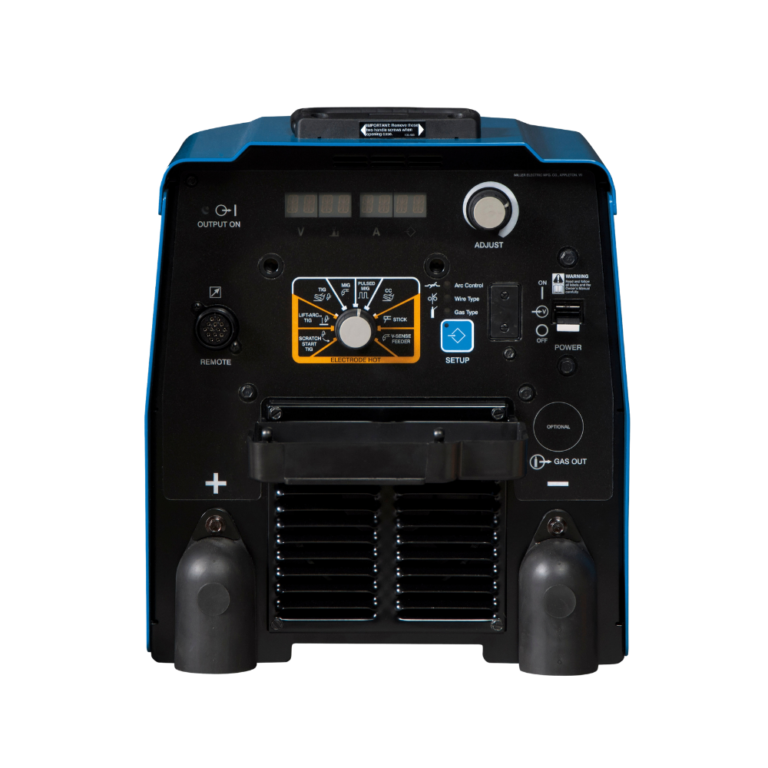

Welder-Friendly Control Panel – Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.
SharpArc®Technology – Controls the arc in Pulsed MIG (GMAW-P) welding and gives total control over the arc cone shape, puddle fluidity, and bead profile.
