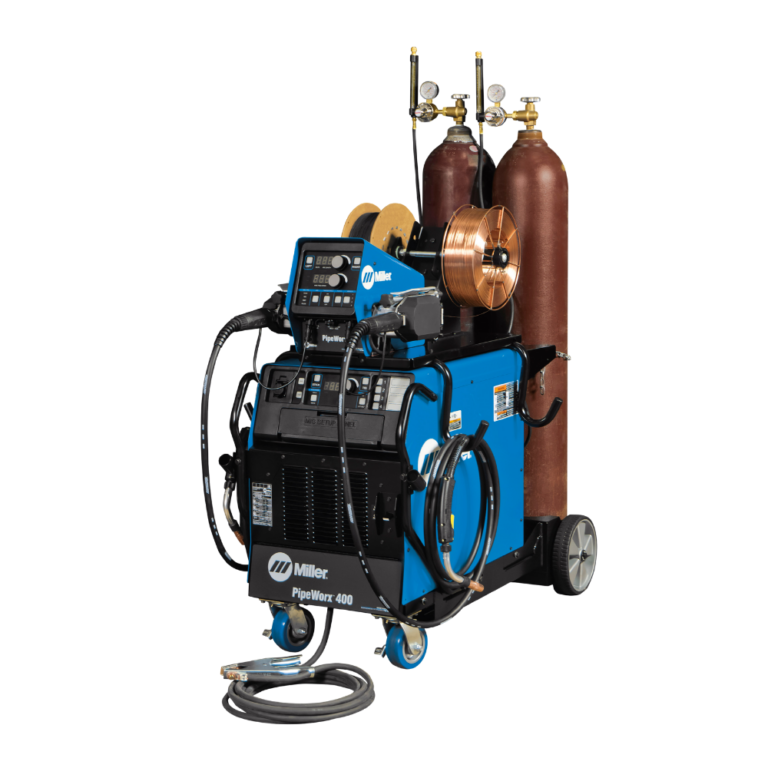

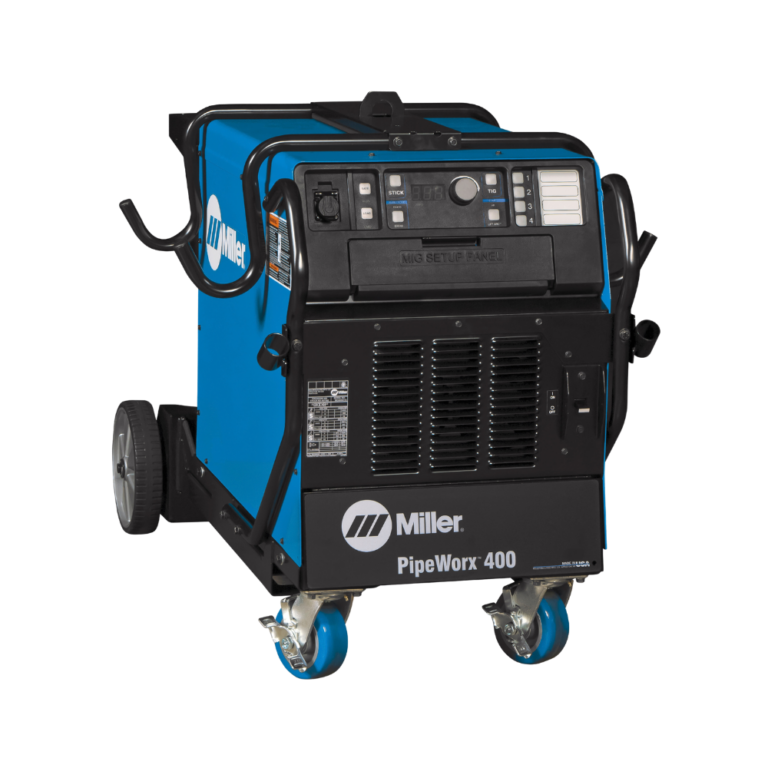

PipeWorx 400

951000094 / 907382

Streamline your pipe fabrication with the PipeWorx Welding System. Optimized for pipe shops, this specialized system offers easy process changes and high-productivity RMD® and Pulsed MIG programs. Designed to eliminate setup errors, it ensures code-quality welds and maximum throughput for professional pipe welders.

Model Numbers	951000094 – PipeWorx 400 230/460V Welding System Package 907382 – PipeWorx 400 Power Source 300366 – PipeWorx Dual Bench Feeder 300367 – PipeWorx Feeder Cable Kit (Feeder on Power Source)
Welding Process:	Stick (SMAW) DC HF TIG (GTAW) MIG (GMAW) RMD Pulsed MIG (GMAW-P) Flux-cored (FCAW)
Output Range:	Stick 40–400 A, DC TIG 10–350 A, MIG/flux-cored: 10–44 V, 400 A
Input Power:	400 V, 3-phase, 50/60 Hz.
Rated Output:	All 100% Duty Cycle, DC Stick 400A at 36V , DC TIG 350A at 24V , MIG/Flux Cored – 400A at 34V

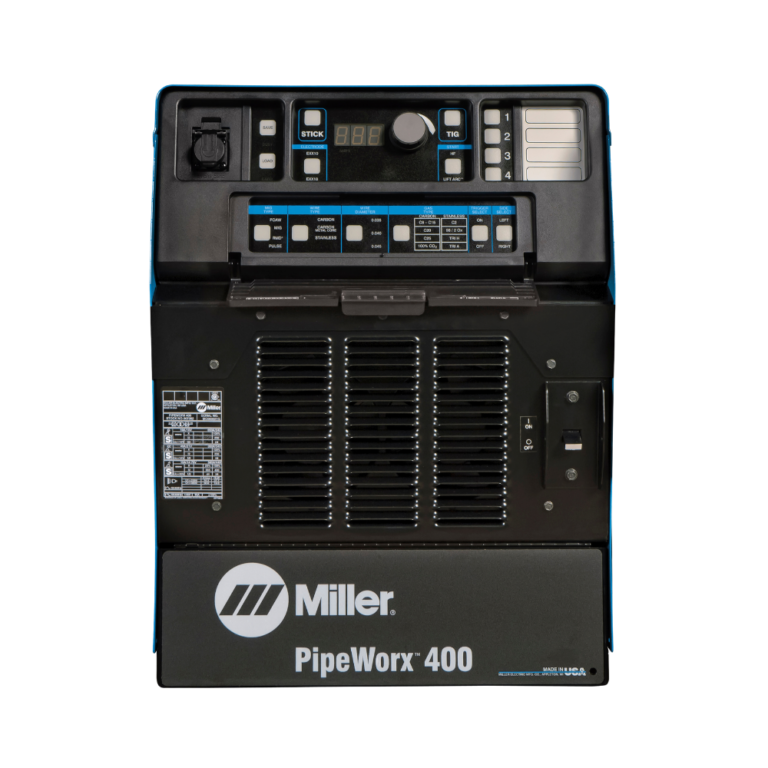

Simple Process Setup – Clearly labeled controls in easy-to-understand welder terminology. Requires just a few basic steps to set up a new weld process, resulting in less training time and minimizing errors from incorrect setups. The front panel was designed by welders for welders. Only backlit controls are adjustable to eliminate confusion. The memory feature stores four programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder). Beneficial when using multiple procedures, multiple process parameters or multiple welders, and eliminates the need to remember parameters.
Quick Process Changeover – No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx ‘Quick-Select’ technology automatically selects the welding process, the correct polarity, cable outputs, and welding parameters. Quick process changeover eliminates set-up time for switching cables and gas hoses. Also, reduces the risk of weld reworks due to incorrect cable connection.
Multiprocess Machine – Weld processes are optimized to deliver superior arc performance and stability specifically for root pass, fill, and cap pipe welding. Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored and MIG welding processes. Also features the advanced RMD® and Pulsed MIG processes that deliver superior quality welds, increase productivity, and reduce rework and training.
Streamlined System – Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in the dusty shop environment. Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area. Cables remain connected to the power source and do not need to be switched for different welding processes. All system components have been selected to meet the needs of a pipe fabrication shop.
