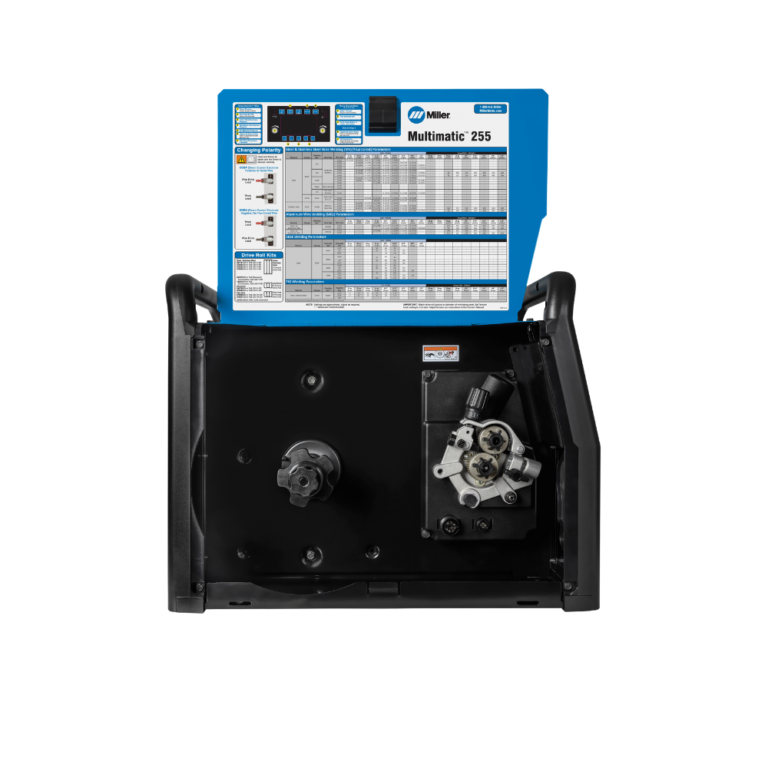

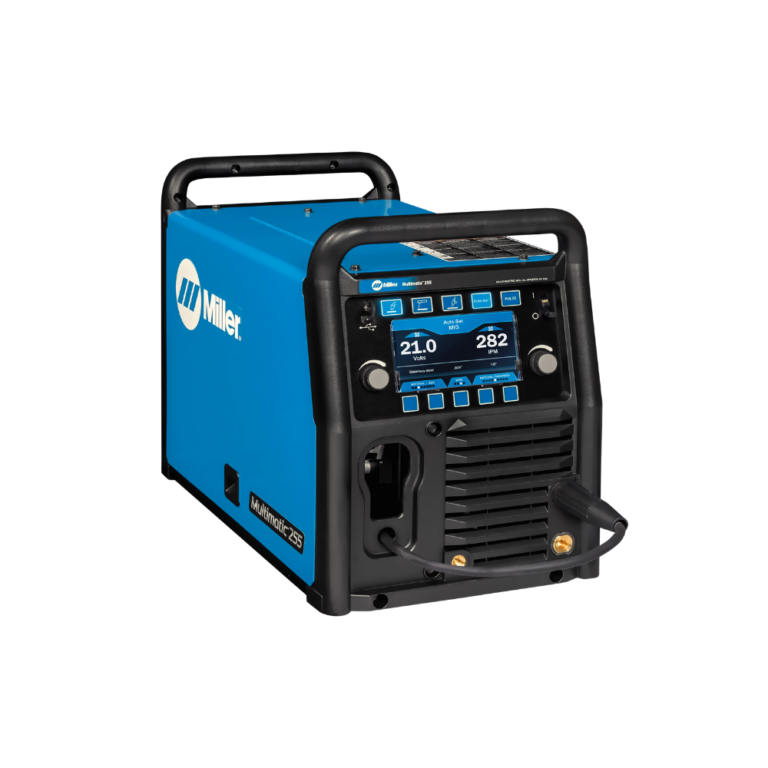

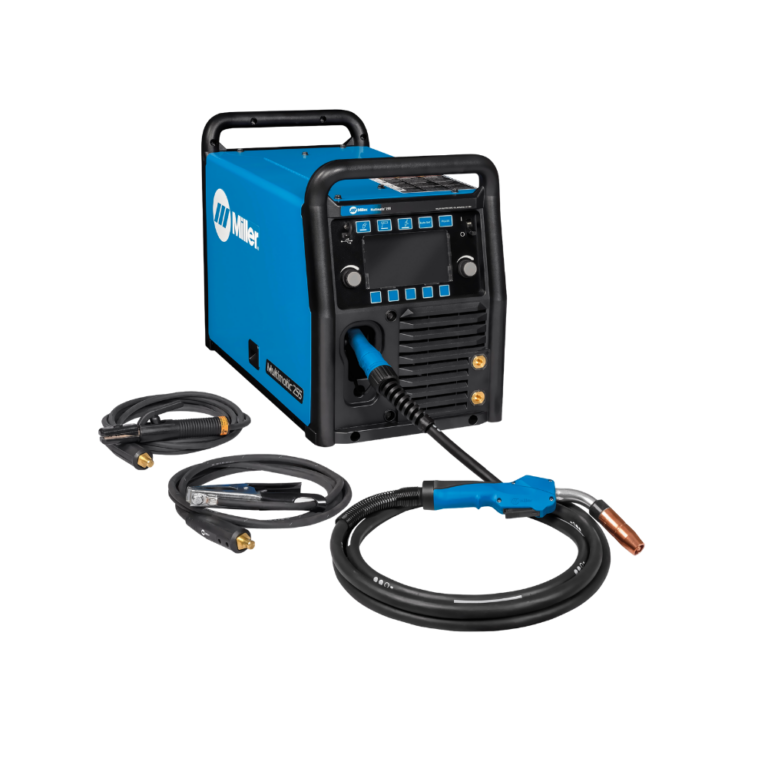

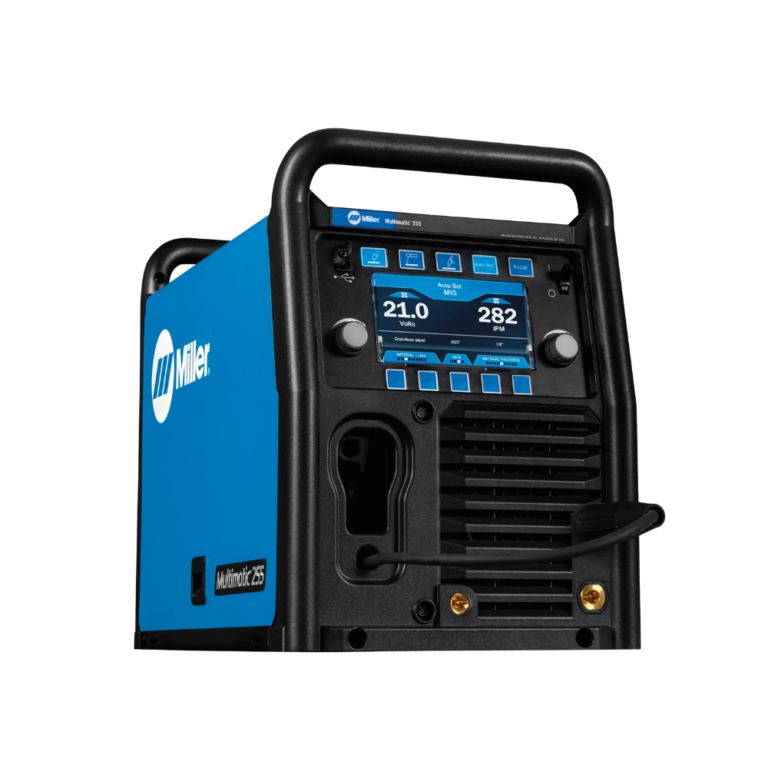

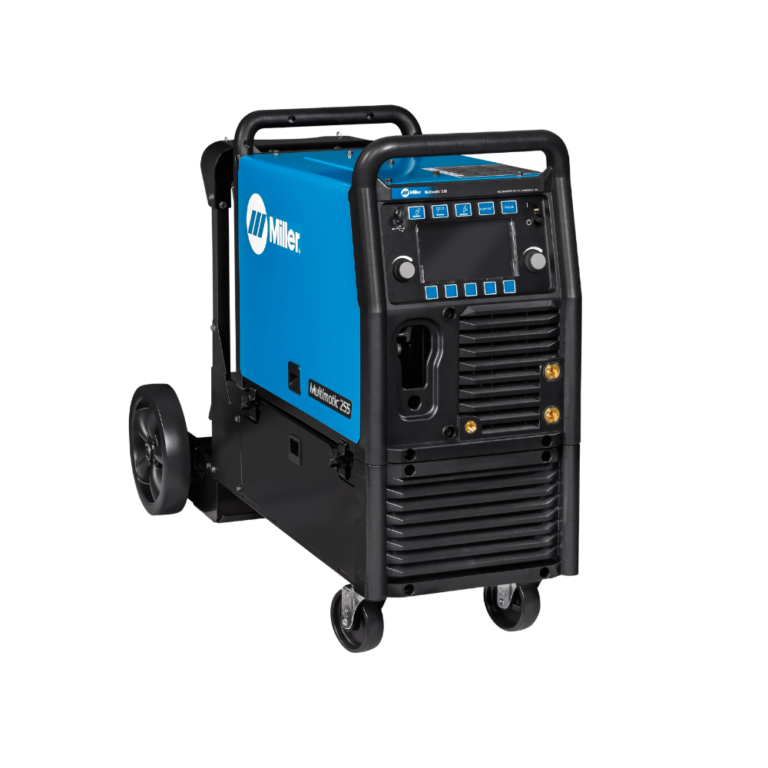

Multimatic 255

907728

Upgrade your productivity with the Multimatic 255. Designed for professional fabricators, this machine delivers advanced Pulsed MIG and multiprocess capabilities. With a compact design and an intuitive interface, it’s the ultimate choice for shop or field work, offering superior arc performance and ease of use.

Welding Process:	MIG , Pulsed MIG , Flux-cored , DC stick , DC Lift-Arc TIG , Pulsed TIG
Output Range:	MIG/FCAW: 20–350 A, DC TIG: 5–275 A, Stick: 30–275 A
Input Power:	Auto-Line™ 208–575 V, single-phase
Rated Output:	All 60% Duty Cycle: MIG/FCAW: 230 A at 25.5 V, TIG: 275 A at 21 V, Stick: 200 A at 28 V

Pulsed MIG welding delivers higher quality – Lower heat input for less distortion on thin materials; less spatter minimizes post-weld grinding and rework, allowing more welding time. Perform welding applications that couldn’t be done in the past.
Auto-Set Technology – Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Portability – Machine only weighs 84 lb
Program mode allows easy saving and recall, delivering more productivity and consistent quality for welders of all skill levels using prequalified weld settings. Minimizes the need for supervisors to intervene.
Locks and Limits – Controls weld parameter ranges, minimizing deviations from the welding procedure specifications (WPS).
USB Port – Provides the ability to easily update software, back up settings, and transfer saved weld programs from one unit to the next.

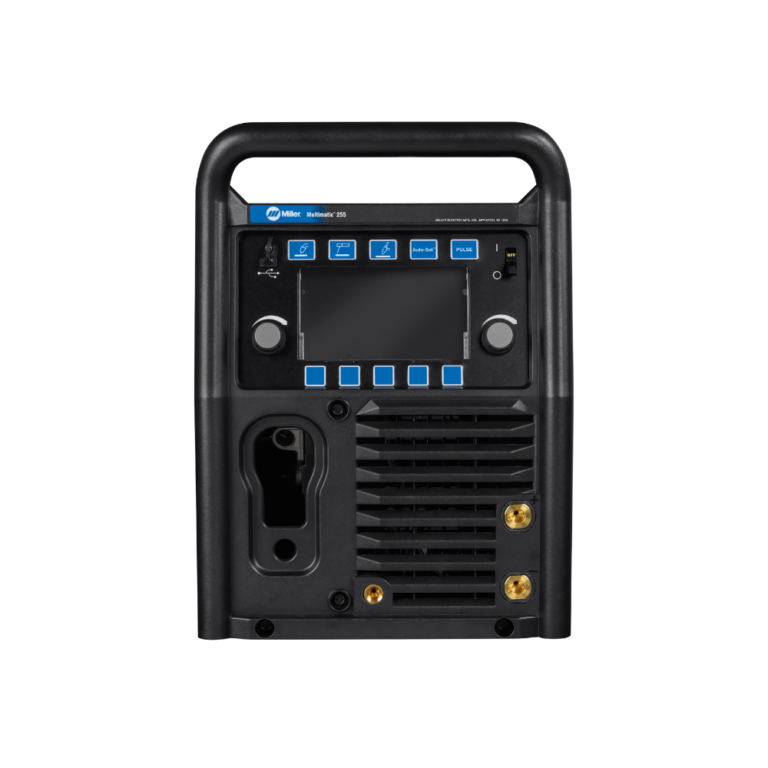

Easy-to-use Interface – 7-inch color LCD ensures proper machine setup and parameter selection, reducing setup time and increasing weld time

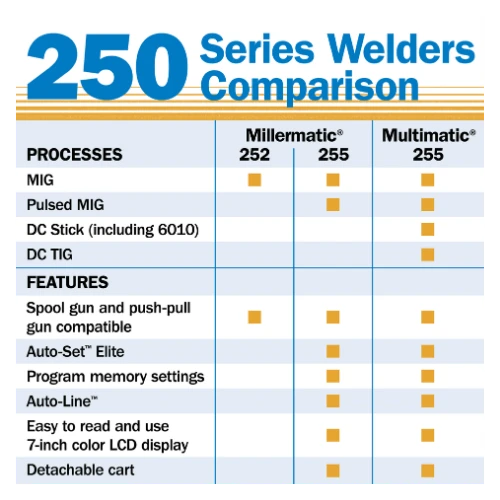

Versatility – Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG, and DC Pulsed TIG
Generator Compatible – Will be able to operate and provide full output when powered by an engine-driven welder with 12000 Watt (12K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
