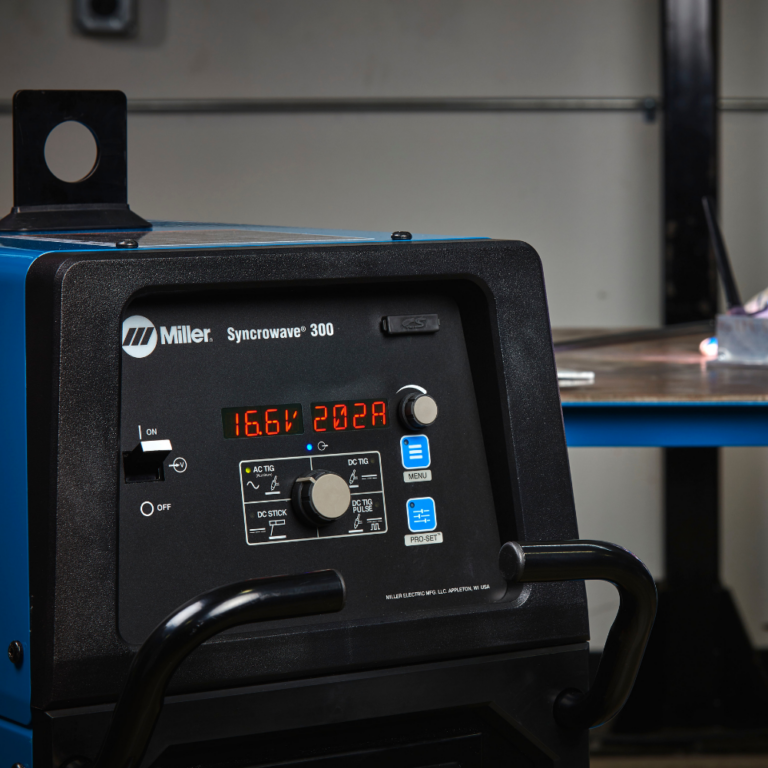

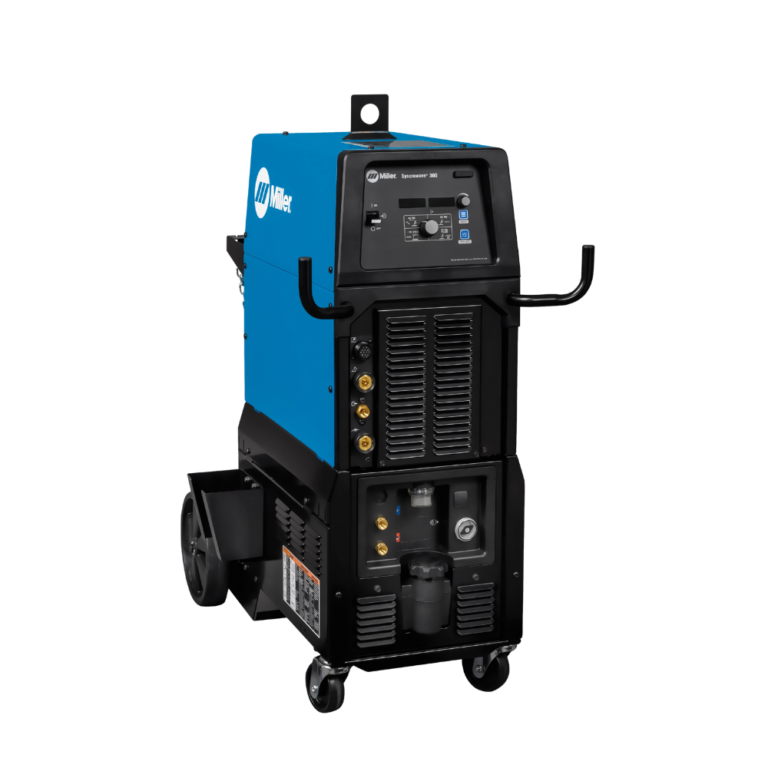

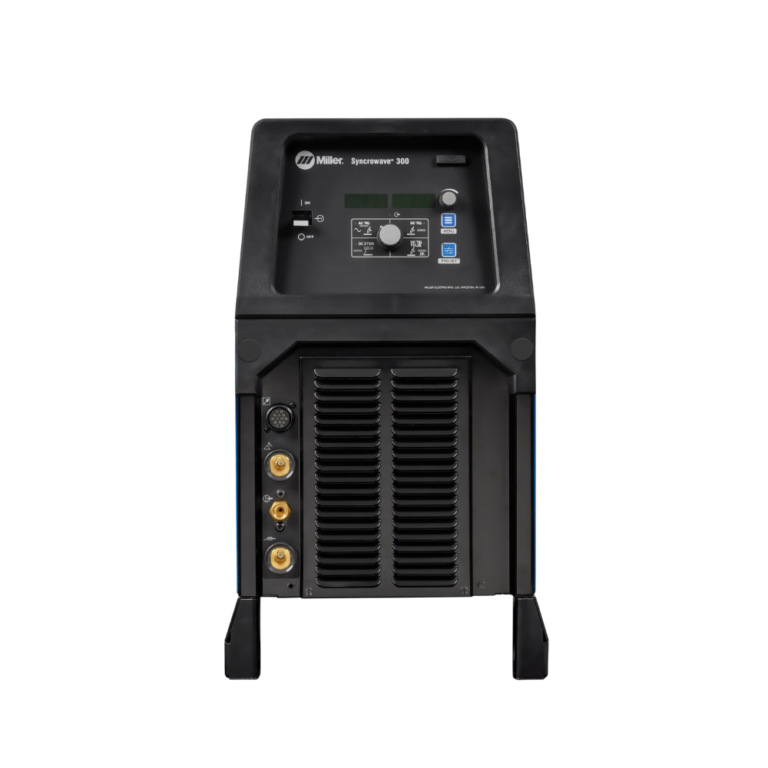

Syncrowave 300

907782 / 907782001 / 951000003 / 951872

The latest Syncrowave 300 machines are the energy-efficient TIG welding power sources that make it easier for any welder to get more work done. This will help achieve high productivity with lower operating costs. Pro-Set™ Feature eliminates the guesswork when setting TIG weld parameters. Better arc performance delivers more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done.

Part Numbers	Syncrowave 300: :907782(Machine Only) Syncrowave 300 AC/DC TIG Runner:907782001 Syncrowave® 300 Wired Foot Pedal Complete 951000003 Syncrowave 300 Complete with Wireless Foot Control – 951872
Welding Processes	AC/DC TIG (GTAW), DC TIG (GTAW), Pulsed DC TIG (GTAW-P), Stick (SMAW)
Input Power	380/400 V 3-phase power
Output Range	TIG (3-phase) 300 A at 22 V, 30% 210 A at 18.4 V, 60% 175 A at 20 V, 100% Stick (3-phase) 230 A at 29.2V, 30% 160 A at 26.4 V, 60% 200 A at 28 V, 100%
Weight	Power Source – 45.8 kg (101 lb.) With Cooler and Running Gear-80 kg (176.4 lb.)

Easy to Use – The intuitive user interface is simple to understand, making it easy to adjust parameters. This means less time training new employees, so more work gets done.
Pro-Set Feature -This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse, and DIG parameters.
Auto-Link – Circuit automatically links the power source to the primary voltage being applied (208/240/480 V, single- or three-phase).
AC Frequency Control – Controls the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
Simple to Install – Accepts either single- or three-phase input power.
Energy Efficient – Save up to 33 percent on energy costs versus outdated welding equipment.
Better Arc Performance – Delivers more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
Smaller Footprint – Smaller, lighter machines are easier to move around and improve workplace conditions.
