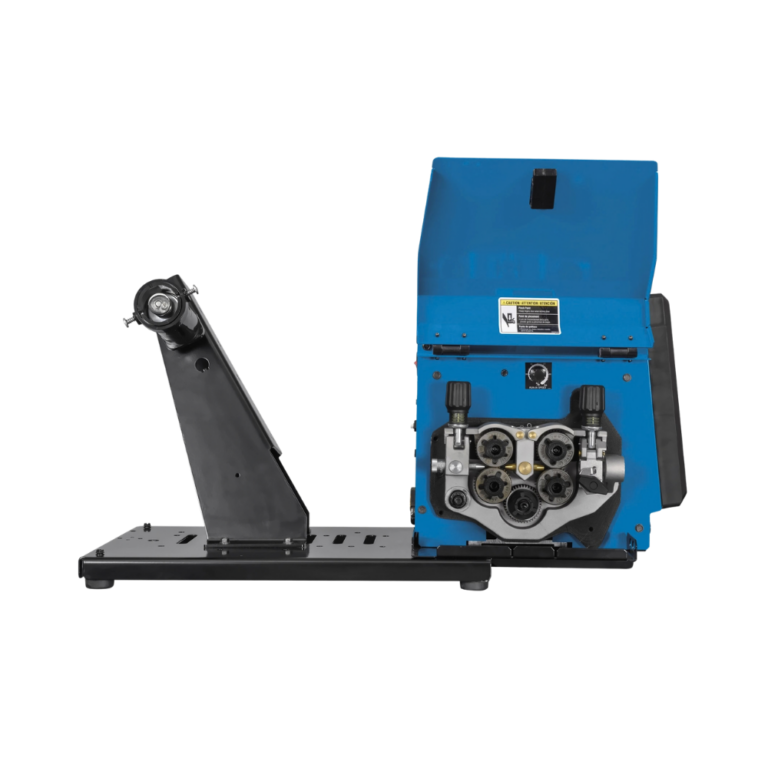

20 Series Feeder

301499 / 301499001

Simple, cost-effective 4 roll constant-speed wire feeder for industrial manufacturing. Delivers smooth feeding, trigger hold, burnback control, and quick-change drive rolls for reliable high-duty-cycle performance.

Part Number	301499 – 20 Series Base: 301499001 – 20 Series Digital
Welding Process:	MIG (GMAW) Flux-cored (FCAW) (gas- and self-shielded)
Wire Diameter Capacity	023–5/64 in. (0.6–2.0 mm)
Input power:	24 VAC, 3.5 A, 50/60 Hz
Wire Feed Speed	75–750 ipm (1.9–19 m/min)
Weight	46 lb. (21 kg)

Industrial Design – Ideal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation.

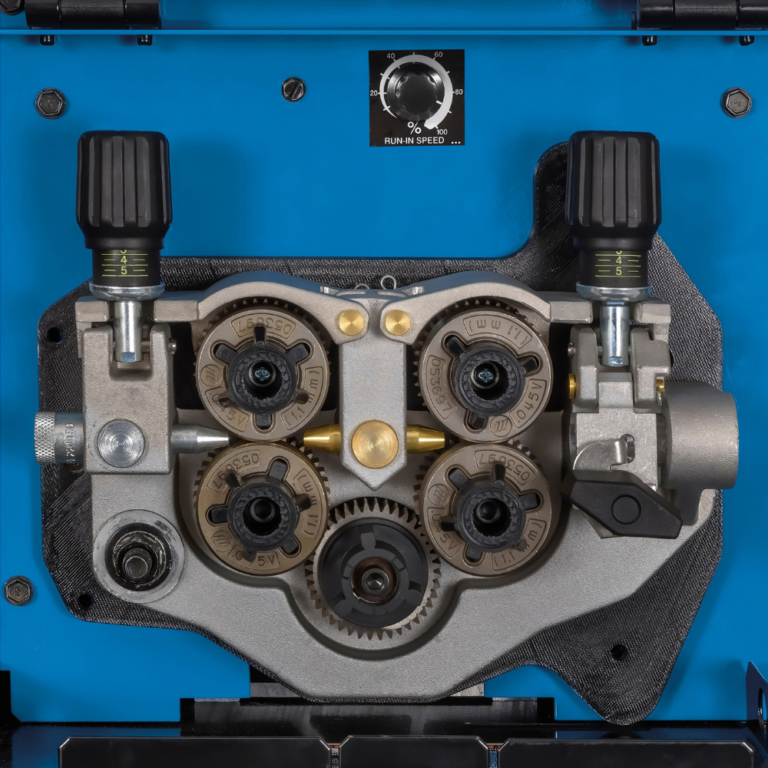

Four Gear-Driven Drive Rolls – Provide smooth, positive wire feeding for most wires.
Trigger Hold – Allows the operator to make long welds without holding the trigger continuously, reducing operator fatigue.
Motor Ramp and Burnback Control – Provides excellent wire-start and wire-stop performance.
Quick Change-Drive Control – Saves time with standard, quick-change drive rolls.
