Intellx™ Feeders

951941001 / 951784001

Heavy-industrial bench feeders with tiered features that cater to different applications,
including push-pull capabilities.

Part Number	951941001 – Intellx™ Elite Single with Bernard® BTB 400 Package 951784001 – Intellx™ Pro Single with Bernard® BTB 400 Package
Welding Process:	MIG (GMAW) Flux-cored (FCAW) EZ-Set MIG (GMAW)* EZ-Set Accu-Pulse® (GMAW-P)* EZ-Set Versa-Pulse™ (GMAW-P) EZ-Set High-deposition MIG (GMAW) EZ-Set RMD® (Regulated Metal Deposition)** With Intellx™ Pro and Intellx™ Elite feeders. *With Intellx™ Elite feeders.
Wire Diameter Capacity	.023–5/64 in. (0.6–2.0 mm) Elite model only — Aluminum: .035–1/16 in. (0.9–1.6 mm)
Input power:	50 VDC
Wire Feed Speed	50–780 ipm (1.3–19.8 m/min.)
Weight	Single-wire: 44.8 lb. (20.3 kg)

Easy-to-use – EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
User-friendly interface – makes the system easy to set up and adjust with minimal training.
AccuLock S Consumables -AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
Legacy meets pulse – Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.

Three Intellx™ wire feeder options

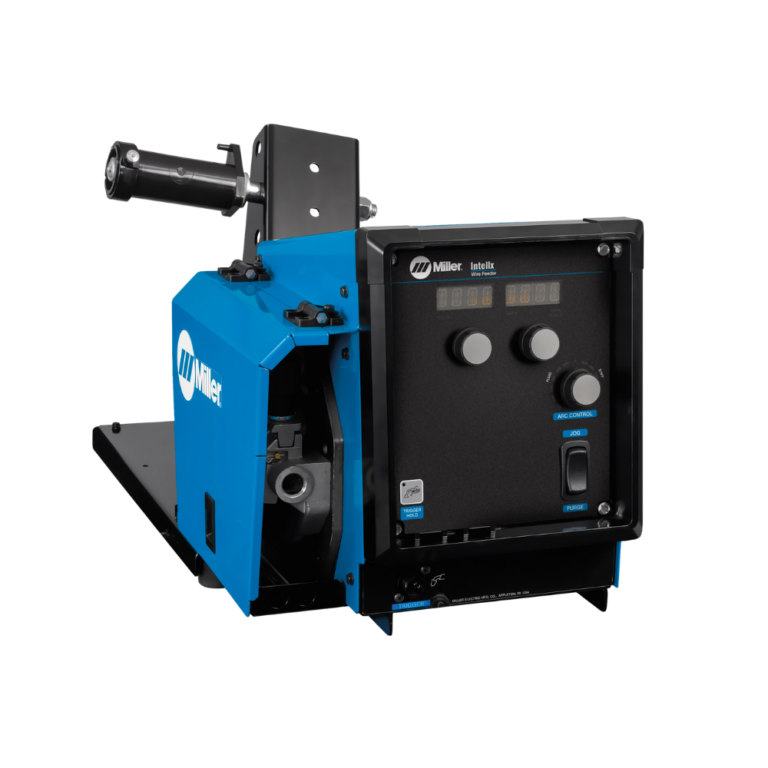

Basic with arc control feature means welders can produce better welds with minimal parameter adjustments.

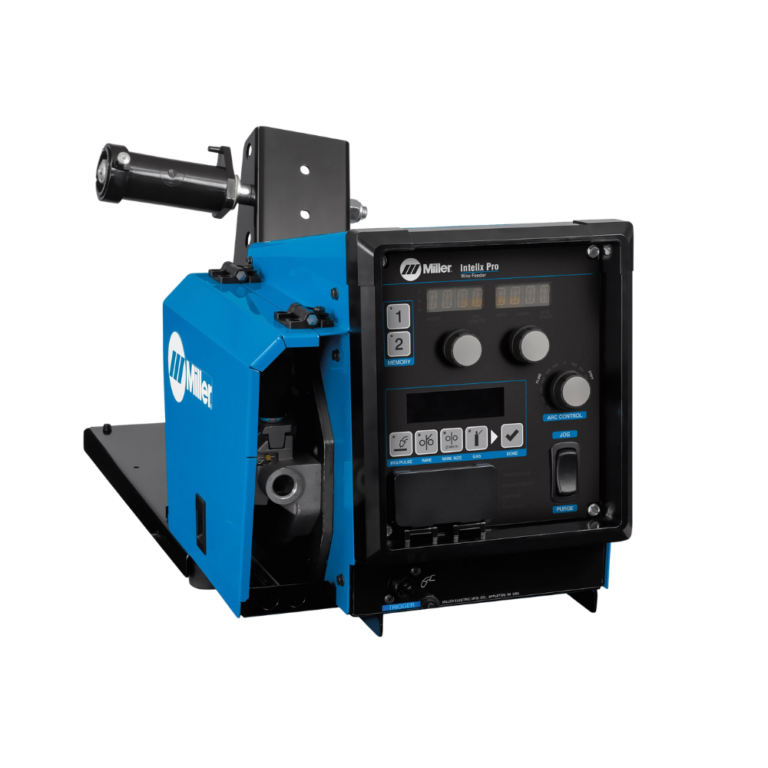

Pro adds EZ-Set, Accu-Pulse®, memory buttons, and weld programs. Accu-Pulse® provides a 28 percent wider operating window and a more forgiving arc.
Elite adds additional weld programs, an intuitive display with on-demand graphics, and more control.
